Sintered Porous Element Ensures Strength and Flow Efficiency

Sintered porous element are formed by high-temperature sintering of metal or ceramic powders, combining strength with excellent permeability. Available in sheet or tube forms, they are widely used in liquid and gas filtration, gas diffusion, electrochemical supports, and sound absorption, making them essential in industrial, energy, and environmental applications.

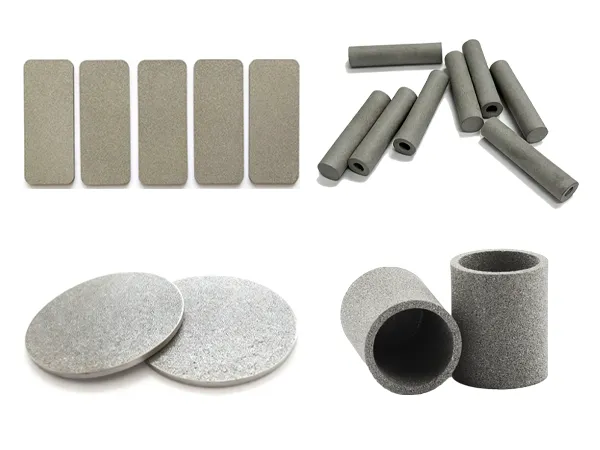

Four shapes of sintered porous elements on a white background
Category

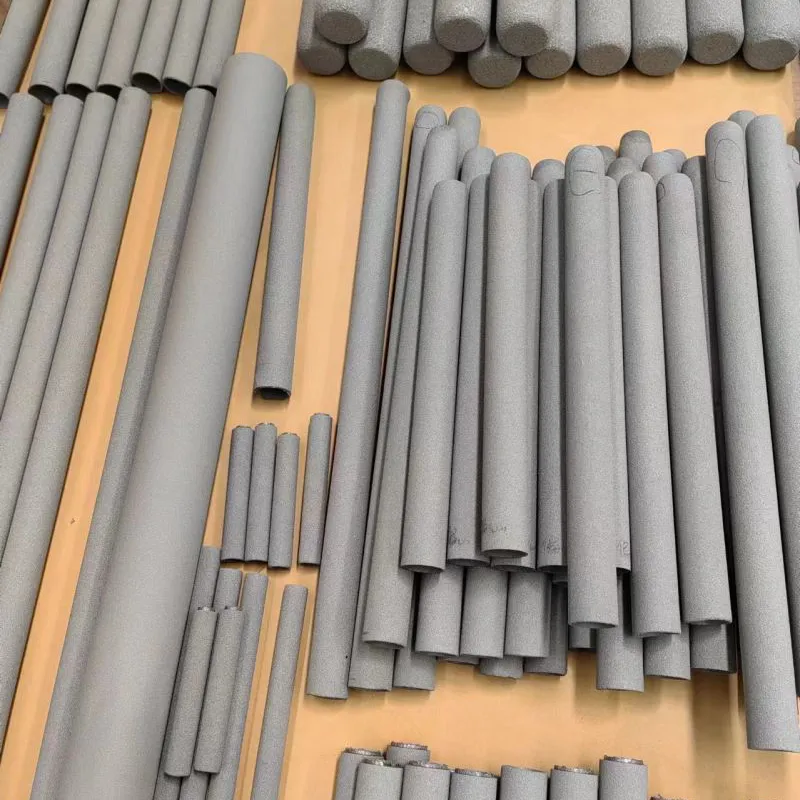

A row of sintered porous tubes arranged side-by-side on a gray background

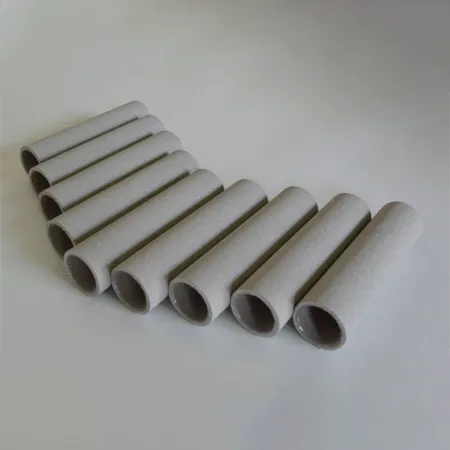

Sintered porous tubes
Details
Sintered porous tubes
Blue sintered porous tube drawing
Tubes A (inch)
(standard tolerance)
B (inch)
(standard tolerance)
L (inch)
(standard tolerance)
Smallest
standard size
0.25
(+0.012/-0.002)
0.125
(nom.)
6
(+0.125/-0.000)
Largest
standard size
1.000
(+0.050/-0.010)
0.750
(nom.)
24
(+0.125/-0.000)
  • Standard tube lengths: 6", 12", 18", 24".
  • Other tube lengths, diameters and sizes available – consult factory.
  • Notes:①0.250" O.D. in 6" length only. ②±0.015 tolerance is also available – consult factory.
×

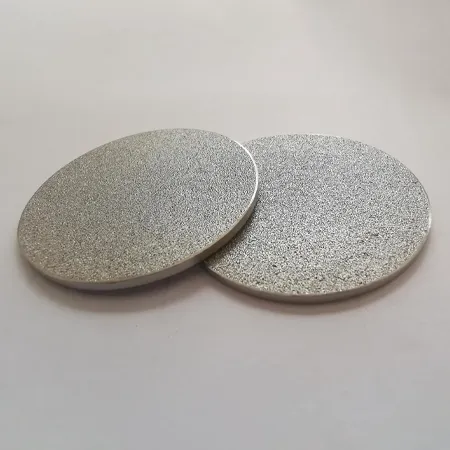

Two circular, sheet-like sintered porous discs on a gray background

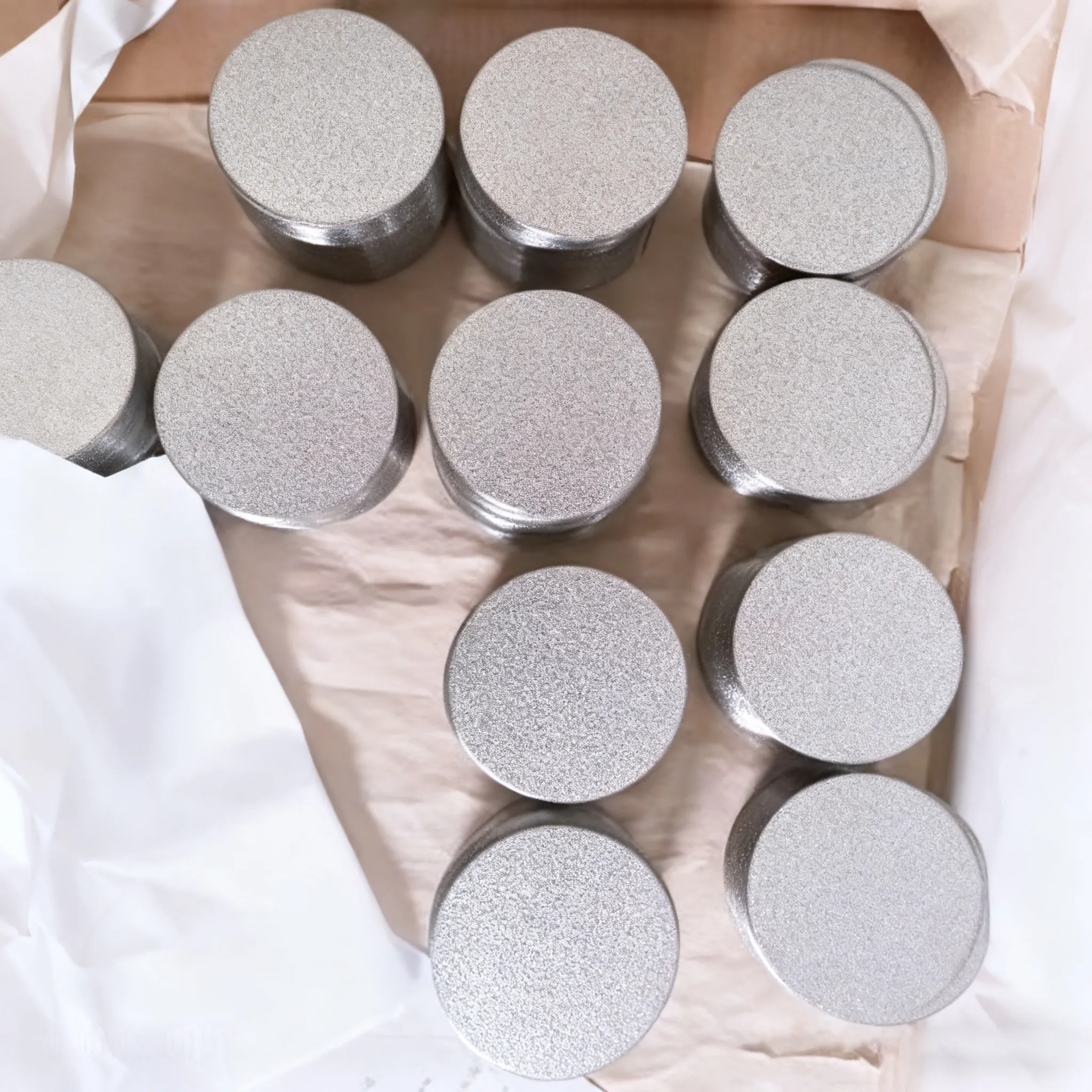

Sintered porous discs
Details
Sintered porous discs
Blue sintered porous disc drawing
Discs D (inch)
(standard tolerance)
T (inch)
(standard tolerance)
Smallest
standard size
0.062
(±0.002)
0.039
(±0.005)
Largest
standard size
1.000
(±0.008)
0.125
(±0.015)
  • Also available: discs from 0.020" to 8.375" in diameter.
  • Larger discs cut from porous metal sheets are also available.
×

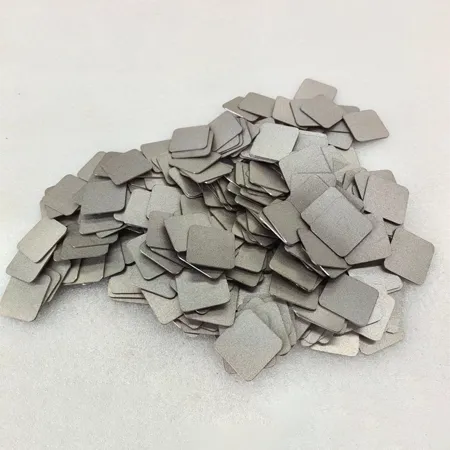

A square, sheet-like sintered porous sheet on a gray background
Sintered porous sheet
Details
Sintered porous sheet
Blue sintered porous sheet drawing
Sheets W (inch)
(standard tolerance)
L (inch)
(standard tolerance)
T (inch)
(standard tolerance)
Smallest
standard size
8.50
(+0.093/-0.062)
10.00
(+0.093/-0.062)
0.039/0.062
0.078/0.093
Largest
standard size
10.00
(+0.093/-0.062)
12.00
(+0.093/-0.062)
0.125
(±0.010)
  • Other sizes and thicknesses are also available.
  • Notes:① = ±0.005; ② = +0.015/-0.010
×

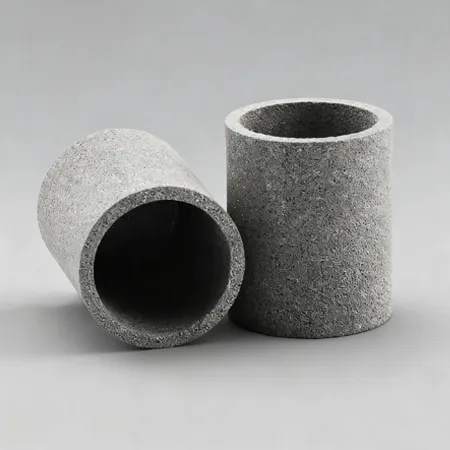

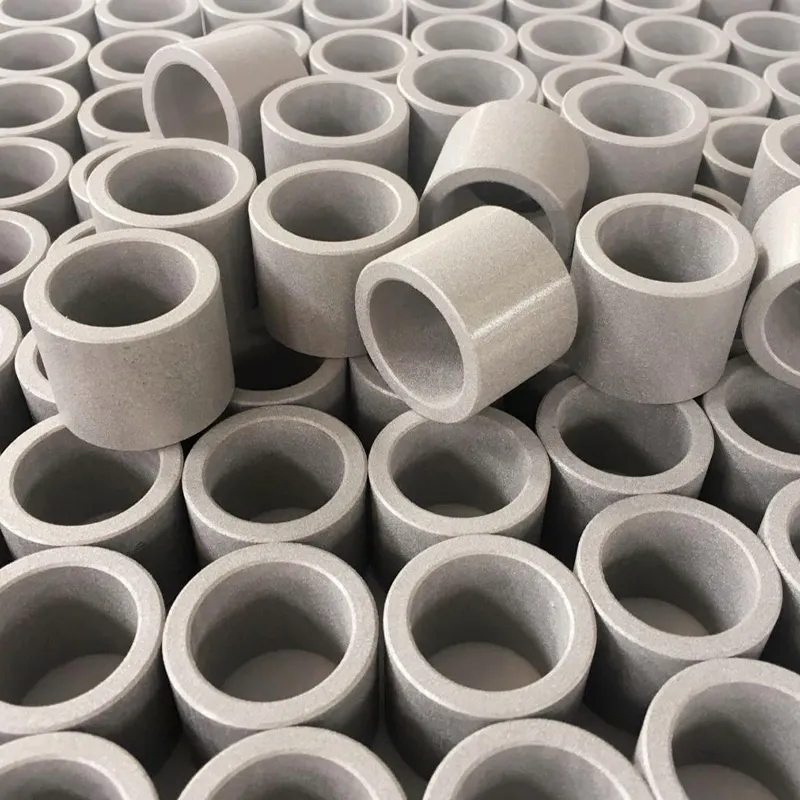

Sintered porous cups on a gray background
Sintered porous cups
Details
Sintered porous cups
Blue sintered porous cup drawing
Cups A (inch)
(standard tolerance)
B (inch)
(standard tolerance)
L (inch)
(standard tolerance)
Smallest
standard size
0.125
(±0.005)
0.062
(±0.005)
0.125
(±0.015)
Largest
standard size
0.812
(±0.015)
0.641
(±0.010)
1.060
(±0.015)
  • Also available: cups from 0.078" to 1.57" O.D.
×
Specification
  • Material: Stainless steel (304, 316L, 310, 347, 430), Hastelloy® C-2764, C-224, X4, N4, B4, B2; Inconel® 6004, 6254, 690; Nickel 200; Monel® 400(70 Ni – 30 Cu); Various materials available, including titanium4, alloy 204, and bronze. Please consult the factory for additional special alloys.
  • Precision: 0.22–100 μm
  • Temperature resistance: -200 °C to +1000 °C
  • Compressive strength: 3 MPa
Features
  • Extended lifespan
  • High strength
  • Uniform porosity
  • Repeatedly cleanable
  • Repeatedly cleanable
  • High temperature resistance
