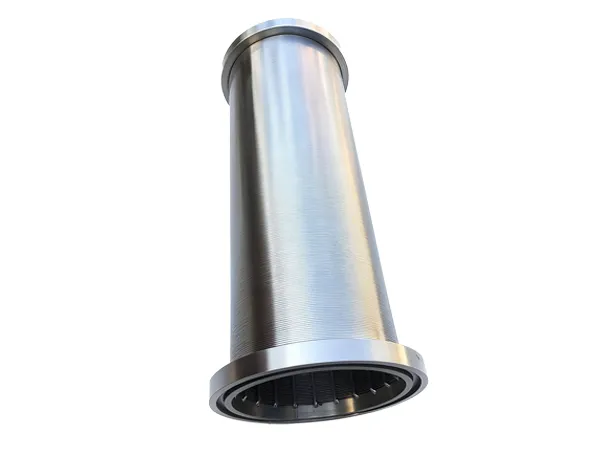

Custom Wedge Wire Sand Screen for Sand Control in Energy & Water Wells

The wedge wire sand screen features high open area, excellent strength, long service life, and superior sand control performance. It efficiently intercepts formation sand and other solid particles, ensuring the smooth passage of fluids such as water, oil, and gas, and serves as the core component for solid-liquid separation.

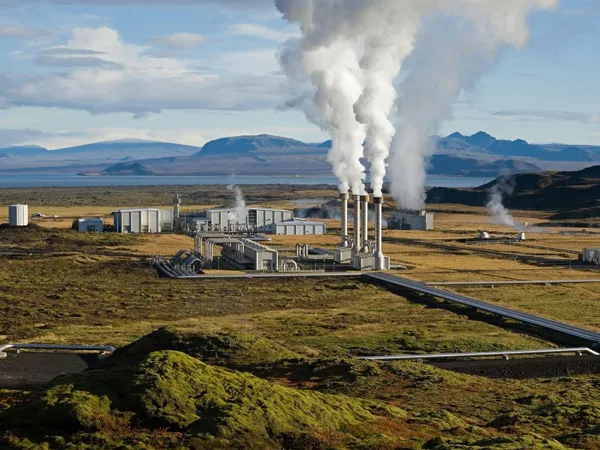

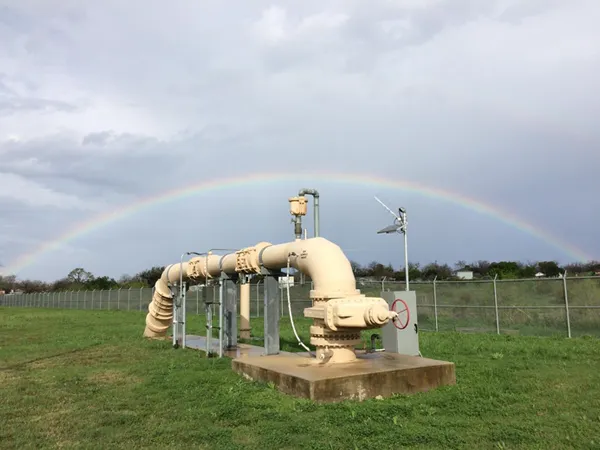

Wedge wire sand screens are now widely used in water wells, oil wells, gas wells, and geothermal wells. We also offer customization services tailored to your specific application and practical requirements.

Specification

Material:Stainless steel (304, 316L), duplex stainless steel (2205), Hastelloy, Monel.
Slot: 0.1–2.0 mm, can be precisely designed according to the particle size distribution of formation sand (D10, D50). Common specifications include 0.3 mm, 0.5 mm, 0.8 mm, and 1.0 mm.
Outer diameter: 2" – 16" or larger; the most common sizes are 4", 6", and 8".
Length: 1–12 m (customizable connection available)
Connection: Standard API threads (e.g., NPT, BSP), flange connection, and baffle ring connection, enabling seamless integration with standard well pipes and fittings.

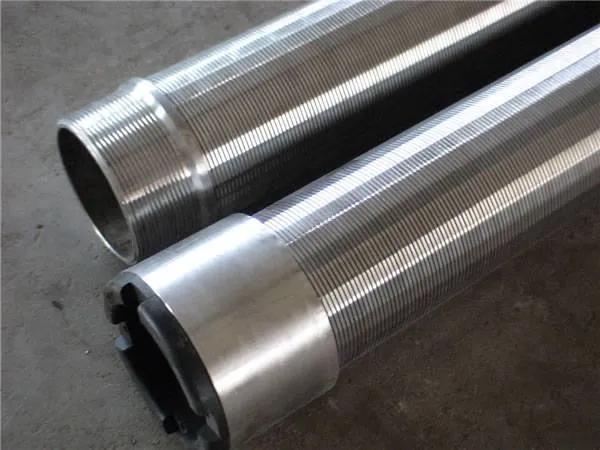

Detail view of the end of the threaded connection

Wedge wire sand screen thread connection

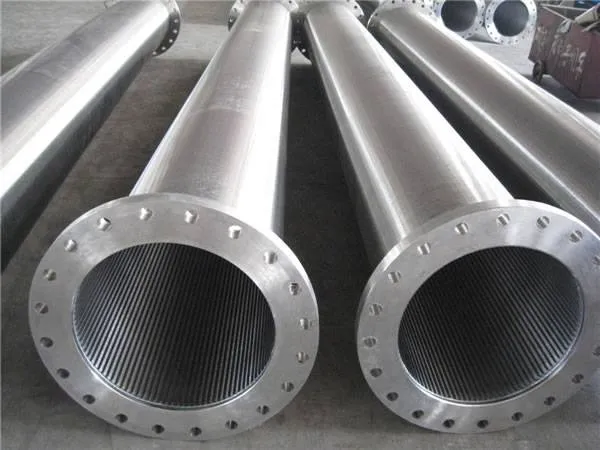

Detail view of the end of the flange connection

Wedge wire sand screen flange connection

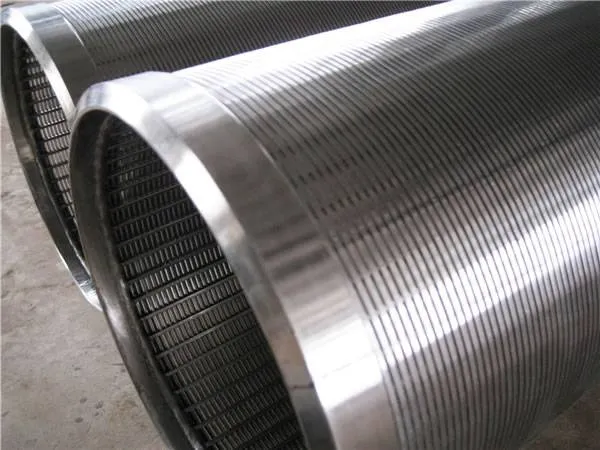

Detail view of the end of the baffle ring connection

Wedge wire sand screen baffle ring connection

Features

High-efficiency sand control
High open area
Fully welded construction, impact resistant
Excellent self-cleaning capability
Long service life
High mechanical strength
Easy installation

Service & Support

Advanced manufacturing process. We utilize fully automated CNC resistance welding and laser welding machines to ensure consistent weld quality, uniform slot openings, and eliminate cold welds.
Rigorous material selection and inspection. All raw materials are sourced from qualified suppliers and are accompanied by Material Test Certificates (MTC).
Professional technical support. Our team of experienced engineers provides expert sand control design and selection guidance based on customer-supplied data.
Extensive product line. Available in a wide range of sizes from 2" to 16", with options for dual-layer, multi-layer, and special structure screens.
Fast delivery capability. Standard orders can be fulfilled within 15–30 days.
Superior cost-effectiveness. Leveraging large-scale production and lean management, we offer customers high-quality products with outstanding performance at competitive prices.
