Wedge Wire Rotary Drum Screen for Efficient Industrial Solid-Liquid Separation

Wedge wire rotary drum screen is an efficient, continuous self-cleaning solid-liquid separation equipment, widely used in water treatment, food, chemical, mining, and papermaking industries. Its core component is a fully welded cylindrical screen, precisely fabricated from wedge wire (V-wire) and support rings.

During operation, the drum rotates at a preset speed. The material to be processed (liquid or slurry) enters the drum from one end. Liquids or fine particles smaller than the screen slot pass through the screen and are discharged, while larger solids are retained and conveyed to the outlet for discharge by the rotating drum. The optional backwash device effectively clears screen surface blockages, ensuring continuous and stable operation.

This equipment features a compact structure, high degree of automation, large processing capacity, and low maintenance costs, positioning it as an efficient and reliable solid-liquid separation solution in modern industry.

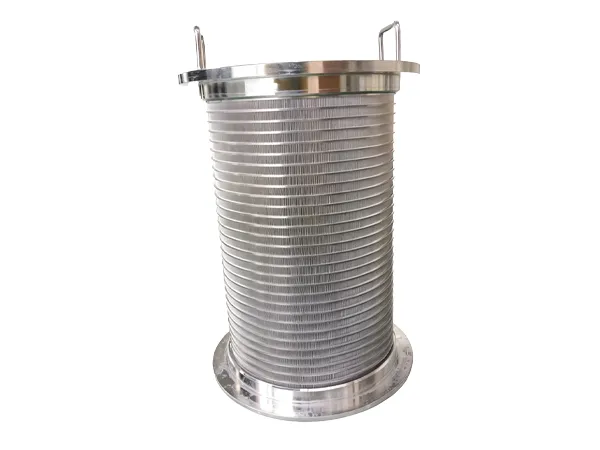

A wedge wire rotary drum screen placed on a factory floor

Specification

Screen Material: SS304, SS316L, Hastelloy, Titanium
Support Structure: Typically carbon steel (with anti-corrosion treatment) or stainless steel (SS304/SS316L), chosen according to operating conditions.
Slot Size: 0.02–3 mm, precisely customizable based on client requirements; common specifications include 50 μm, 100 μm, 200 μm, 500 μm, etc.
Diameter: 300–3000 mm
Length: 1000–6000 mm
End Connection Type: Flange, metal ring, or other customizable options.
Open Area: 15% – 40%
Drive Type: Direct drive via motor reducer or sprocket transmission, can be equipped with a variable frequency drive to adjust rotational speed.
Rotational Speed: 5–30 RPM, adjustable according to material characteristics and separation requirements.
Tip: Customizable based on processing capacity and installation space.

Features

High-precision wedge wire screen
Self-cleaning design
Robust and durable
High processing capacity
Low maintenance cost
Modular and hygienic design

Service & Support

Core Technology. Employs fully automatic wedge wire welding and precision drum forming to ensure high precision and consistency of the screen.
Customization Capability. Fully customized solutions can be provided based on flow rate, water quality, space, and material requirements.
Strict Quality Control. Full-process inspection from raw materials to finished products is implemented to ensure reliability.
Rich Experience. Hundreds of sets of equipment have been delivered to the global food, water treatment, Papermaking, and other industries.
Quick Response Service. Providing technical support, installation guidance, and after-sales warranty.
High Cost-Effectiveness. Optimized design and large-scale production deliver products with excellent performance at reasonable prices.

Filtration Industries

Application

/ 07

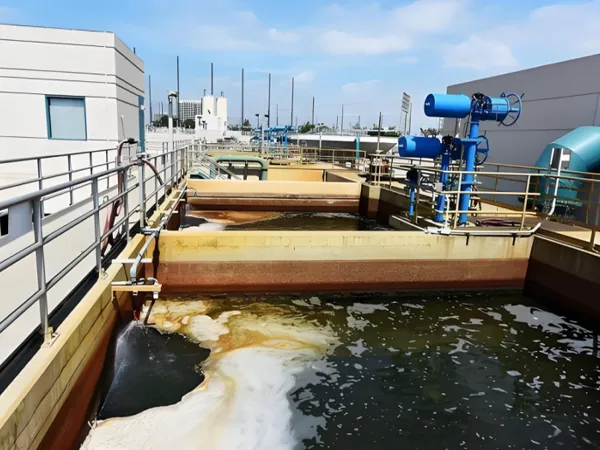

Municipal and Industrial Water Treatment

Primary filtration in municipal wastewater treatment plants (removes hair, fibers, plastic pieces, etc.).
Pre-treatment of industrial wastewater (e.g., papermaking, textile, and printing and dyeing wastewater).
Impurity interception in rainwater harvesting systems.

Chemical and Pharmaceutical

Catalyst recovery or impurity filtration in chemical production.
Fine filtration of process liquids.

Food and Beverage Processing

Pomace separation for fruit juice, beer, and wine.
Solid-liquid separation in starch and syrup production.
Circulating filtration of vegetable washing water.

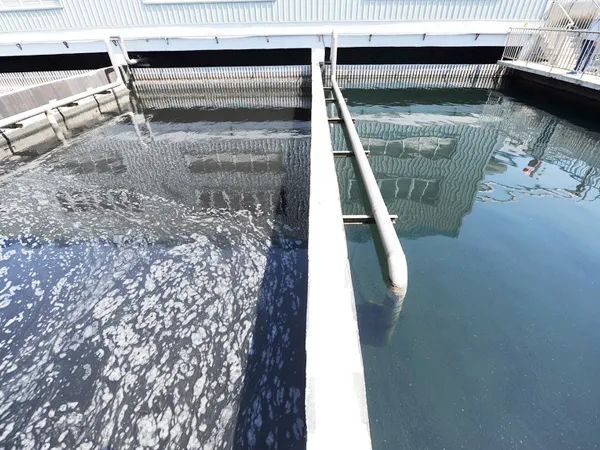

Papermaking Industry

Fiber recovery in white water recovery systems.
Pulp purification and impurity removal.

Cooling Water System

Removal of suspended solids from circulating cooling water in power plants and steel mills, protecting downstream equipment.

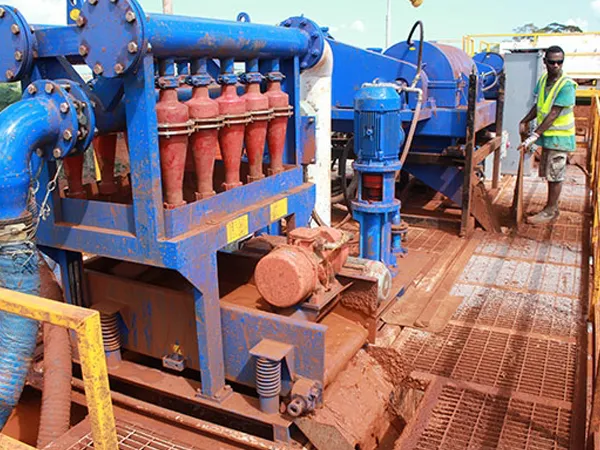

Mining and Mineral Processing

Dewatering and classification of ore pulp.
Solid-liquid separation in tailings treatment.

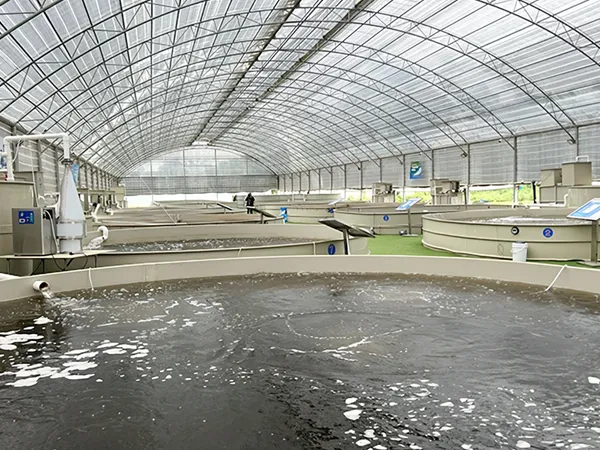

Aquaculture Water Circulation

Rapid separation of large particulate suspended solids such as feed residues and fish excretions, reducing water turbidity and enhancing the treatment efficiency of circulating water systems.

Products Gallery

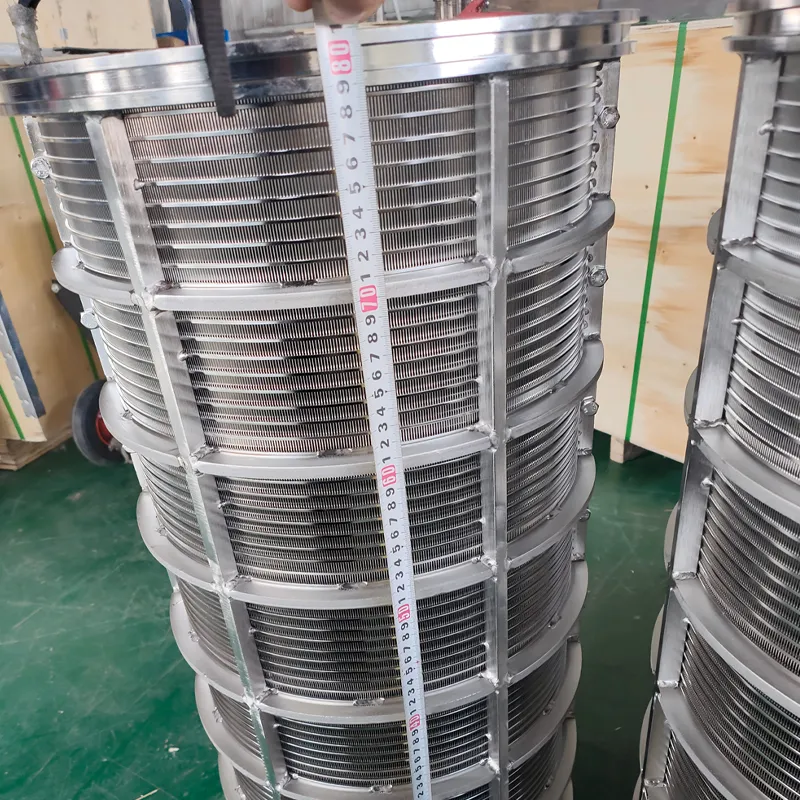

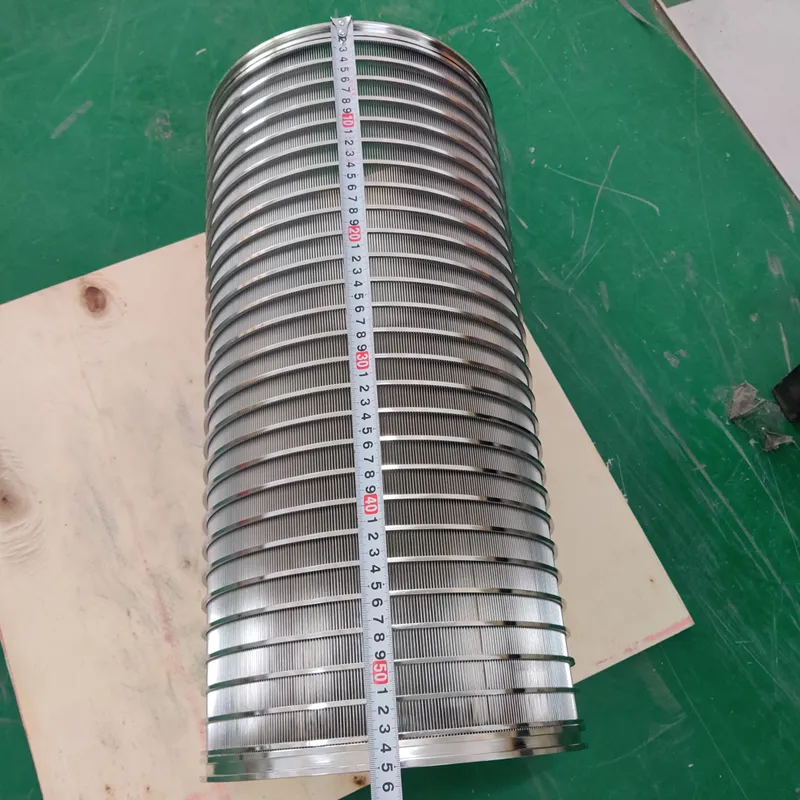

Worker measuring the length of the wedge wire rotary drum screen

55 mm long wedge wire rotary drum screen

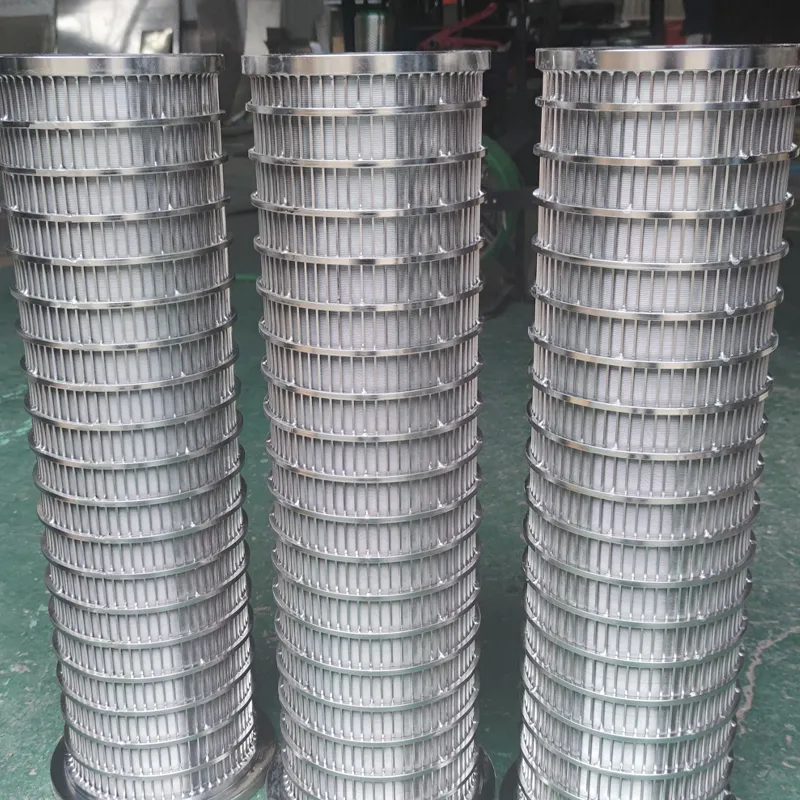

Wedge wire rotary drum screen

80 mm long wedge wire rotary drum screen

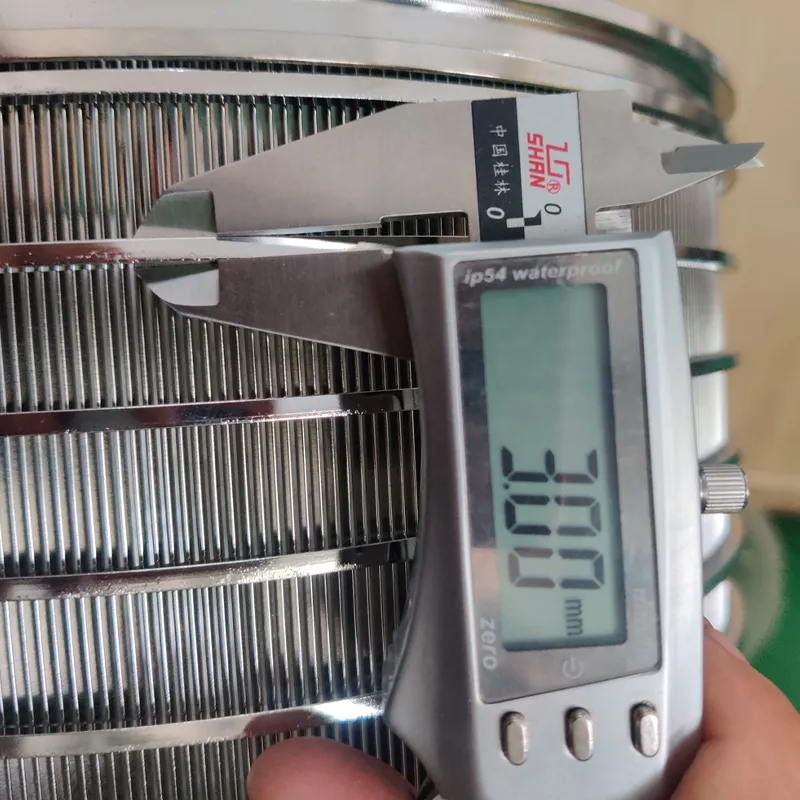

A worker is measuring the wire diameter of a wedge wire rotary drum screen

3 mm wire diameter wedge wire rotary drum screen
