Precision Stainless Steel Wire Mesh Tubes for Industrial Filtration

Woven mesh tubes are an essential product in our series of deep-processed wire mesh components. Using advanced weaving technology and automated welding processes, high-quality stainless steel or special-alloy wire mesh is precisely formed into durable cylindrical structures. These tubes offer high mechanical strength, accurate and uniform aperture control, and excellent permeability, making them well-suited for liquid and gas filtration, mechanical protection, and flow regulation.

They are widely used as critical filtration elements in extruders, pelletizers, and chemical fiber spinning systems to efficiently remove impurities from the melt, stabilize product quality, and safeguard downstream equipment.

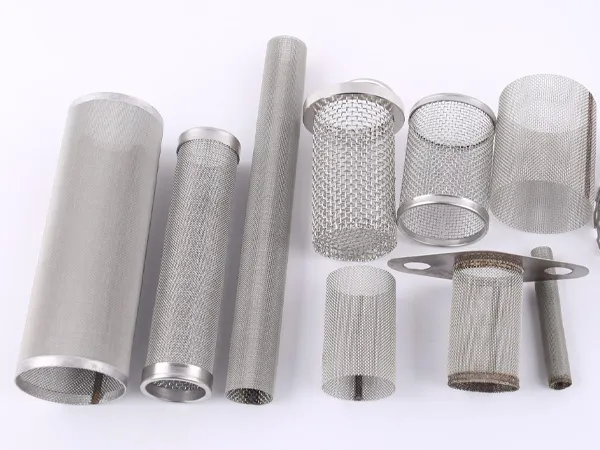

Assorted metallic wire mesh tubes displayed on a white background

Category

Boedon offers two main types of tube filter elements based on structural design:

Single-layer wire mesh tube
Multi-layer wire mesh tube

Single-layer wire mesh tube

Multi-layer wire mesh tube

Filtration Rating

Filtration precision is directly determined by the mesh count or aperture of the woven mesh, and is a key parameter affecting filtration performance.

Coarse filtration: Features a lower mesh count, used to intercept larger particulate impurities and protect subsequent precision filters.
Fine filtration: Features a higher mesh count, used to obtain high-purity melt and ensure the quality of the final product.

Recommendation: Please contact our engineers with your process requirements, and we will recommend the most economical precision solution.

Specification

Material: stainless steel 304, 316, 316l, special alloys (Such as Hastelloy and Monel alloys), other metals (Such as low carbon steel, brass, and red copper)
Outer Diameter (O.D.) and Inner Diameter (I.D.): 10–200 mm, customizable
Height or Length: up to 2000 mm, customizable
Ends: Directly open or with reinforced edges
Welding: Spot welding, segmented welding, or continuous longitudinal welding

Three edge-bound single-layer wire mesh tubes

Single-layer wire mesh tube with ring

Three edge-bound multi-layer wire mesh tubes

Multi-layer binding edge tube

Tube end with ring

Applications

Plastic Extrusion: Melt filtration in blown film, sheet, pipe, and fiber spinning.
Chemical Fiber Spinning: Final filtration before spinning components for polyester, nylon, polypropylene, and other fibers.
Rubber industry: Rubber compound filtration in rubber extruders.
Food and Pharmaceutical: For fluid filtration applications with stringent hygiene requirements.
Petrochemical: For the filtration and distribution of various polymer melts and high-viscosity fluids.

Chemical Fiber Spinning

Food and Pharmaceutical

Petrochemical

Why Choose Boedon Woven Mesh Tubes?

Precision filtration, stable quality: Strict mesh size control, covering coarse to fine multi-stage filtration, efficiently trapping impurities to ensure product purity and consistency.
Robust structure, extended service life: High-quality metal wire coupled with precision welding provides high pressure and fatigue resistance, suitable for high-temperature and high-pressure operating conditions.
Lower flow resistance, higher efficiency: A smooth cylindrical body and precise seams reduce flow resistance, minimize pressure drop, enhance production efficiency, and conserve energy.
Customization supported for perfect matching: Dimensions, interfaces, and filtration precision can be customized to specific operating conditions and filtration requirements, ensuring optimal adaptation.
